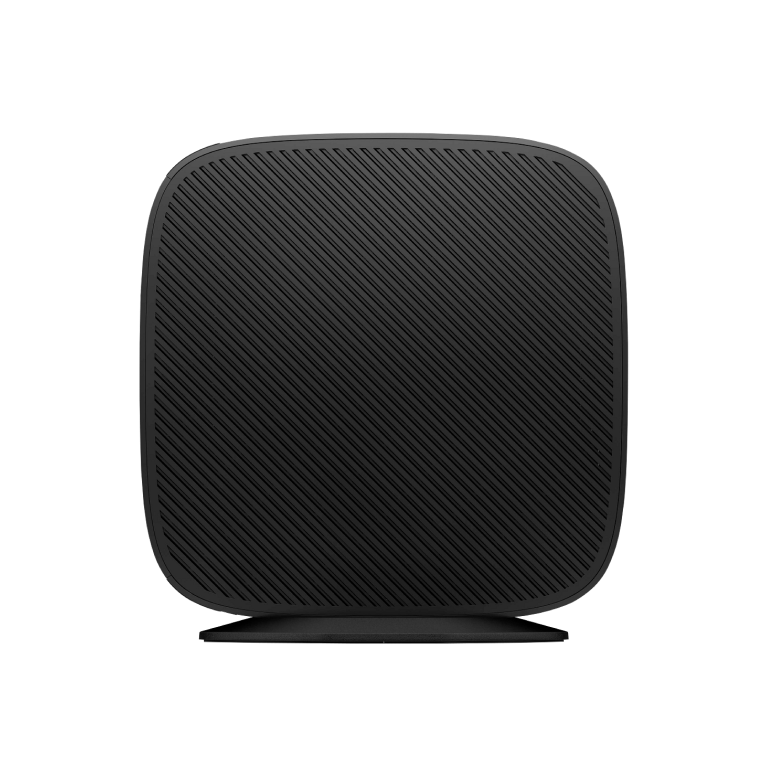

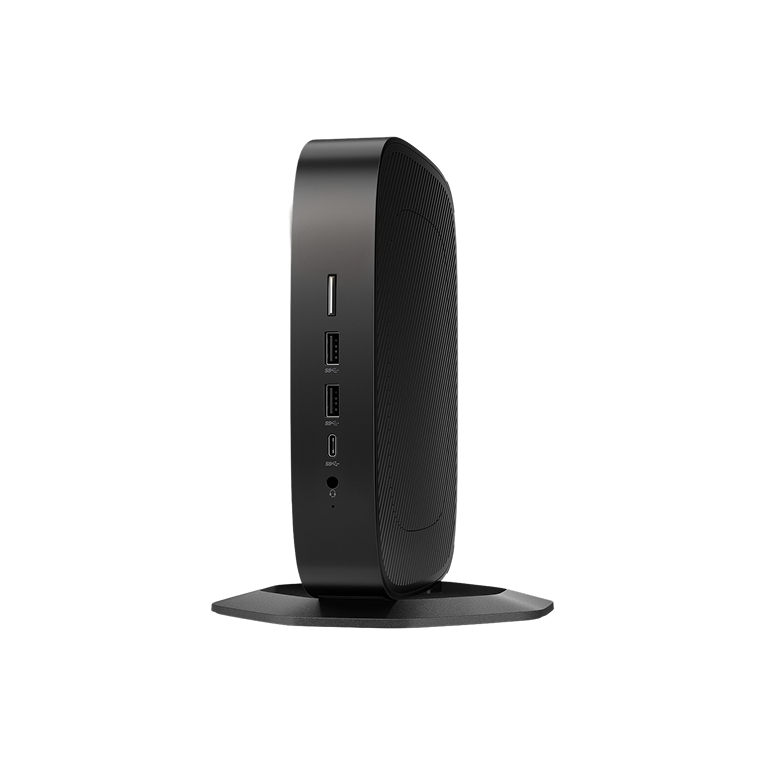

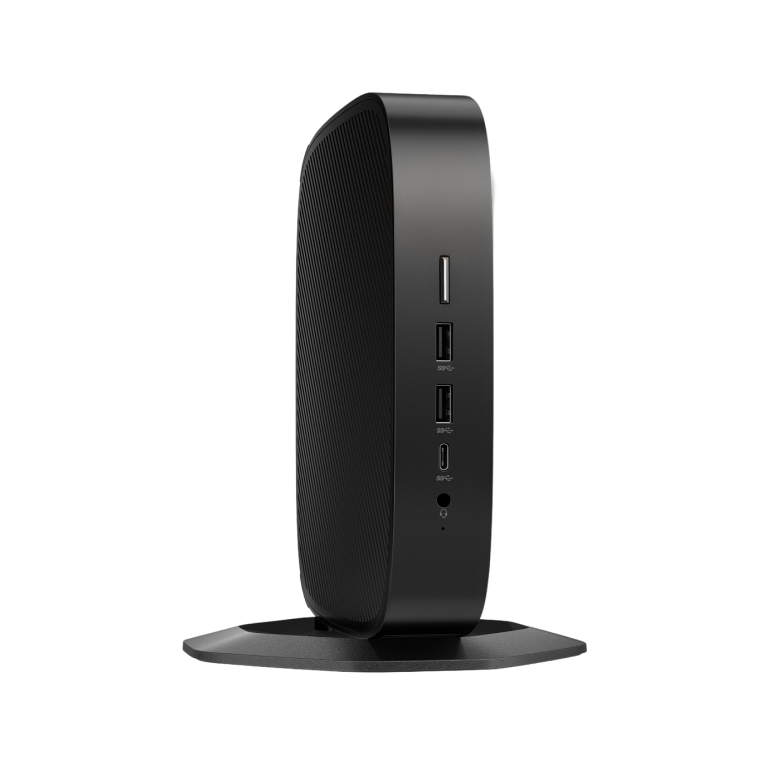

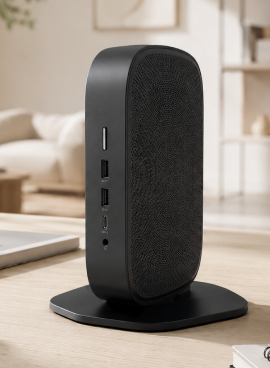

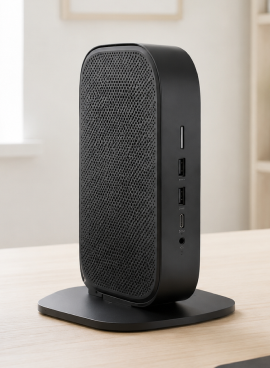

Elite t655 Thin Client

The flexible performance options of the Elite t655 Thin Client enables workforce productivity, while commercial-grade security features provide IT peace of mind. Built to support demanding performance requirements, this device helps end users tackle daily tasks, while versatile configuration options help optimize workspaces.

Product price$550.00

Ask our team about availability and your workspace requirements.

Buy Now

Have a question before you choose? We're here to help.

Carefully selected
For everyday work

Helpful guidance
From real people

See full specifications

GET TO KNOW YOUR DEVICE

Designed for the way you work.

Explore the features and details of the Elite t655 Thin Client.

Refined security

Encrypt data as it flows between the system memory and processor, protect firmware, and lock down access. The Elite t655 Thin Client features multi-layered security with AMD Memory Guard, an embedded OS, and a NIST SP800-193 component.

Flexible configurations

Organize your workspace with a wide variety of configuration options. Set it, mount it, stand it in up to six different orientations with a VESA® mount and get seamless compatibility with select docking devices and peripherals.

Built for productivity

Enhance performance with a next gen AMD Embedded R-Series processor and up to three UHD/4K displays.

Maximize what you can accomplish

Empower your workforce with the combined power and performance of the next-gen AMD Embedded R-Series processor, a high-speed, responsive NVMe solid-state drive, and native support for up to three stunning UHD/4K displays.

Product overview

Overview
[1] Multicore is designed to improve the performance of certain software products. Not all customers or software applications will necessarily benefit from the use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.

[4] Peripherals sold separately or as optional features. Compatible with E24m G4 FHD USB-C Conferencing Monitor, E24u G4 FHD USB-C Monitor, E27u G4 QHD USB-C Monitor, E27m G4 QHD USB-C Conferencing Monitor, and USB-C Dock G5.

[5] 4K content required to view 4K images. Displays are sold separately and are not included.

[1] Multicore is designed to improve the performance of certain software products. Not all customers or software applications will necessarily benefit from the use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.

[2] Elite t655 Thin Client offers Windows 10 IoT 21H2, ThinPro 8.0, and Smart Zero Core.

[3] Mounting hardware sold separately.

[4] Peripherals sold separately or as optional features. Compatible with E24m G4 FHD USB-C Conferencing Monitor, E24u G4 FHD USB-C Monitor, E27u G4 QHD USB-C Monitor, E27m G4 QHD USB-C Conferencing Monitor, and USB-C Dock G5.

[5] 4K content required to view 4K images. Displays are sold separately and are not included.

THE DETAILS THAT MATTER

Technical specifications

Take a closer look before choosing your next device.

Top Specs

Operating system: IGEL OS
Processor: AMD Ryzen™ Embedded R2314 (up to 3.5 GHz max boost clock, 2 MB L2 cache, 4 cores, 4 threads)
Graphics (integrated): AMD Radeon™ Graphics
Memory: 8 GB DDR4-3200 MT/s (2 x 4 GB) Transfer rates up to 3200 MT/s.
Internal Storage: 64 GB eMMC
Ports: 1 SuperSpeed USB Type-A 5Gbps signaling rate; 1 SuperSpeed USB Type-A 10Gbps signaling rate; 1 3.5 mm audio jack
I/O Port location: Front
Network interface: Realtek RTL8111HSH-CG GbE
Wireless: Realtek Wi-Fi 6 RTL8852BE (2x2) and Bluetooth® 5.3 wireless card
Audio: Internal amplified speaker system for basic audio playback
Keyboard: USB Keyboard
Pointing device: Wired 320M Mouse
Power: Smart 45 W External AC power adapter
Sustainable impact specifications: Low Halogen [8]
Software included: Device Manager; Easy Shell; Easy Tools; ThinUpdate; True Graphics; Cloud Endpoint Manager; Microsoft AVD; Write Manager
Warranty: 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.

All Specs

Audio: Internal amplified speaker system for basic audio playback
Browser supported: Mozilla Firefox (for models with ThinPro); Microsoft Edge (for models with Windows 10 IoT Enterprise LTSC 2021)
Certifications and compliances: EMC; EN 60601-1-2
Country of origin: Mexico(ABA)
Dimension note (imperial): Vertical orientation.
Dimensions (W x D x H): 1.38 x 7.87 x 7.87 in
Display support: Up to 3 displays with three DisplayPort™ 1.4 video outputs provided at the back of the system.
End of Life CO2e (kg): 1
Energy Usage CO2e (kg): 44
Graphics: Integrated
Graphics (integrated): AMD Radeon™ Graphics
I/O Port location: Back
Internal Storage: 64 GB eMMC
Keyboard: USB Keyboard
Manufacturer Warranty: 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Material Type for item: FERT
Memory: 8 GB DDR4-3200 MT/s (2 x 4 GB)
Memory layout (slots & size): 2 x 4 GB
Memory Slots: 2 SODIMM
Network interface: Realtek RTL8111HSH-CG GbE
Operating system: IGEL OS
Pointing device: Wired 320M Mouse
Ports: 2 USB Type-A 10Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 3 DisplayPort™ 1.4; 1 RJ-45; 1 audio-in/out
Power: Smart 45 W External AC power adapter
Processor: AMD Ryzen™ Embedded R2314 (up to 3.5 GHz max boost clock, 2 MB L2 cache, 4 cores, 4 threads)
Processor cache: 2 MB L2
Processor core: 4
Product long name specifications: Elite t655 Thin Client, IGEL OS, AMD Ryzen™, 8GB RAM, 64GB eMMC
Product short name specifications: Elite t655 Thin Client, AMD, 8GB RAM, 64GB eMMC
Production CO2e (kg): 59
Protocols: Citrix® HDX; Microsoft RFX/RDP; VMware Horizon® through RDP/PCoIP
Registration required: No
Software included: Device Manager; Easy Shell; Easy Tools; ThinUpdate; True Graphics; Cloud Endpoint Manager; Microsoft AVD; Write Manager
Standard memory note: Transfer rates up to 3200 MT/s.
Storage type: eMMC
Sustainability specifications: Low Halogen
TCO Certified: TCO Certified, generation 9
Total CO2e (kg): 100
Total CO2e (kg) note: A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Transportation CO2e (kg): 0.5
UNSPSC code: 43211506
UPC number: 198990538525
Weight: 2.5 lb (without stand); 2.6 lb (with stand)
Weight note (imperial): Weight will vary depending on configuration.
Wireless: Realtek Wi-Fi 6 RTL8852BE (2x2) and Bluetooth® 5.3 wireless card

Logistics

UPC number: 198990538525
Dimension note (imperial): Vertical orientation.
Dimensions (W x D x H): 1.38 x 7.87 x 7.87 in
Country of origin: Mexico(ABA)
Material Type for item: FERT
UNSPSC code: 43211506
Weight: 2.5 lb (without stand); 2.6 lb (with stand)
Weight note (imperial): Weight will vary depending on configuration

Sustainability

Certifications and compliances: EMC; EN 60601-1-2
Country of origin: Mexico(ABA)
End of Life CO2e (kg): 1
Energy Usage CO2e (kg): 44
Production CO2e (kg): 59
Sustainability specifications: Low Halogen
Sustainability specifications footnote number: [8]
Total CO2e (kg): 100
Transportation CO2e (kg): 0.5

Additional specifications & product notes

Specifications
[1] Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software, or BIOS updates to take full advantage of Windows functionality. Windows is automatically updated and enabled. High-speed internet and a Microsoft account are required. ISP fees may apply, and additional requirements may apply over time for updates.

[2] For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes.

[3] The graphics chipset uses part of the total system memory (RAM) for graphics performance. System memory dedicated to graphics performance is not available for other use by other programs.

[4] Optional or add-on feature.

[5] Wireless cards are optional or add-on features and require a separately purchased wireless access point and internet service. Availability of public wireless access points limited.

[6] The services are sold separately and are governed by the applicable terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the terms and conditions of service or the Limited Warranty provided with your Product.

[7] Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information.

[8] External power supplies, power cords, cables, and peripherals are not low-halogen. Service parts obtained after purchase may not be low-halogen.

[10] Easy Shell is currently available on Windows Embedded Standard 7E, Windows Embedded Standard 7P, Windows Embedded 8 Standard, Windows Embedded 8.1 Industry Pro, Windows 10 IOT Enterprise 2016 LTSC, and Windows 10 IoT Enterprise 2019.

[11] CEM requires Windows 10 IoT Enterprise LTSC 2016 or later, or ThinPro 7.2 operating system or later on endpoint and Internet access.

[13] Wi-Fi 6 is an optional feature that must be configured at the time of purchase. Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 (802.11ax) is backwards compatible with prior 802.11 specs.

[14] Multicore is designed to improve the performance of certain software products. Not all customers or software applications will necessarily benefit from the use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.

[15] AMD Max Boost frequency performance varies depending on hardware, software, and overall system configuration.

[63] TCO Certified is an ISO 14024 Type 1 sustainability label for IT products. Compliance with all criteria is independently verified.

Legal disclaimer
Product image may differ from actual product

AMD, Ryzen, Athlon, and Radeon are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark of its proprietor, used under license. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. Adobe PDF is a trademark of Adobe Systems Incorporated. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. NVIDIA, the NVIDIA logo, Quadro, and GeForce are trademarks and/or registered trademarks of NVIDIA Corporation in the US and other countries. All other trademarks are the property of their respective owners.

[6] Internet access required and sold separately.

[7] TPM 2.0 is limited on ThinPro/Smart Zero, and functionality is dependent upon the use of a customer-enabled application that can locate the TPM chip.

[8] ThinPro 8.0 OS is an optional feature that may be configured at purchase or sold separately. Please see the datasheet for minimum system requirements. They will provide support and available updates through April 2025.

[9] Port options must be configured at the time of purchase.

[10] Optional feature that must be configured at the time of purchase.

[11] Internet access required and not included.

[12] Cable and lock are sold separately and not included.
